eSMART07M - +ESMA07MU301

    This combination does not exist.

    Buy Now

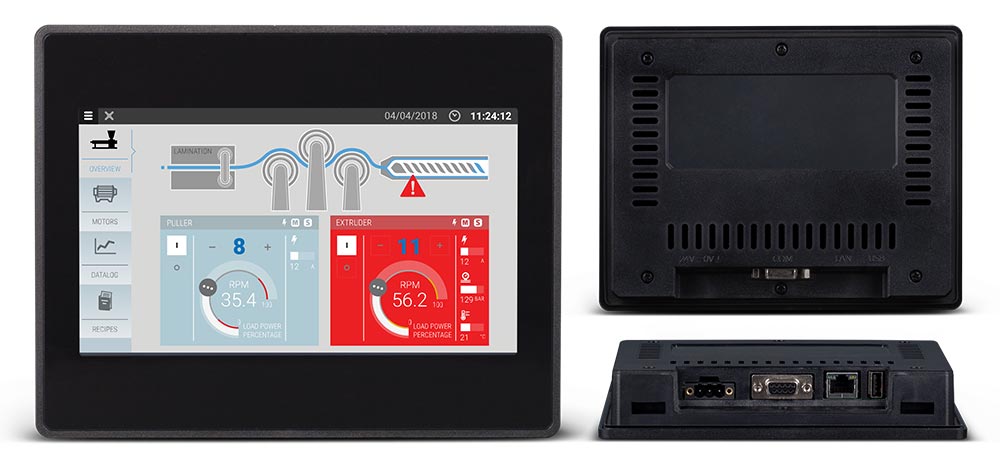

    Display - Colors :7” TFT 16:9 - 64K , Resolution :800x480, WVGA , Brightness :200 Cd/m2 typ. , Dimming :Yes , Touchscreen :Resistive , CPU :32-bit RISC single core - 1 GHz , Operating System :Linux 3.12 , Flash :4 GB , RAM :512 MB , RT-Clock, RTCBack-up, Buzzer :Yes , Interface:, Ethernet port :1 (port 0 - 10/100) , USB port :1 (Host v. 2.0, max. 500 mA) , Serial port :1 (RS-232, RS-485, RS-422, software
    configurable), SD card :No , Expansion :No , Ratings:, Power supply :24 Vdc (10 to 32 Vdc) , Current Consumption :0.3 A at 24 Vdc (max.) , Input Protection :Automatic , Battery :Yes (Supercapacitor) , Environment Conditions:, Operating Temp :0 to 50 °C (vertical installation) , Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X , Dimensions and Weights:, Faceplate LxH :187x147 mm (7.36x5.79“) , Cutout AxB :176x136 mm (6.93x5.35“) , Depth D+T :29+5 mm (1.14+0.19”) , Weight :Approx 0.6 Kg , Approvals:, CE :Electromagnetic Compatibility Directi
    ve 2014/30/EU (EMC), ATEX :Zone 2: II 3 G Ex ic ec IIC T6 Gc , UL :cULus: UL508 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , EU RO MR :Yes , RCM :Yes


    Terms and Conditions
    30-day money-back guarantee
    Shipping: Contact us info@aarkautomation.com


    Display - Colors :7” TFT 16:9 - 64K , Resolution :800x480, WVGA , Brightness :200 Cd/m2 typ. , Dimming :Yes , Touchscreen :Resistive , CPU :32-bit RISC single core - 1 GHz , Operating System :Linux 3.12 , Flash :4 GB , RAM :512 MB , RT-Clock, RTCBack-up, Buzzer :Yes , Interface:, Ethernet port :1 (port 0 - 10/100) , USB port :1 (Host v. 2.0, max. 500 mA) , Serial port :1 (RS-232, RS-485, RS-422, software configurable), SD card :No , Expansion :No , Ratings:, Power supply :24 Vdc (10 to 32 Vdc) , Current Consumption :0.3 A at 24 Vdc (max.) , Input Protection :Automatic , Battery :Yes (Supercapacitor) , Environment Conditions:, Operating Temp :0 to 50 °C (vertical installation) , Storage Temp :-20°C to +70°C , Operating / Storage Humidity :5-85% RH, non condensing , Protection Class :IP66 (front), IP20 (rear) - Type: 2, 4X , Dimensions and Weights:, Faceplate LxH :187x147 mm (7.36x5.79“) , Cutout AxB :176x136 mm (6.93x5.35“) , Depth D+T :29+5 mm (1.14+0.19”) , Weight :Approx 0.6 Kg , Approvals:, CE :Electromagnetic Compatibility Directi ve 2014/30/EU (EMC), ATEX :Zone 2: II 3 G Ex ic ec IIC T6 Gc , UL :cULus: UL508 , UL :cULus: Class 1 Div 2 , DNV-GL :Yes , EU RO MR :Yes , RCM :Yes
