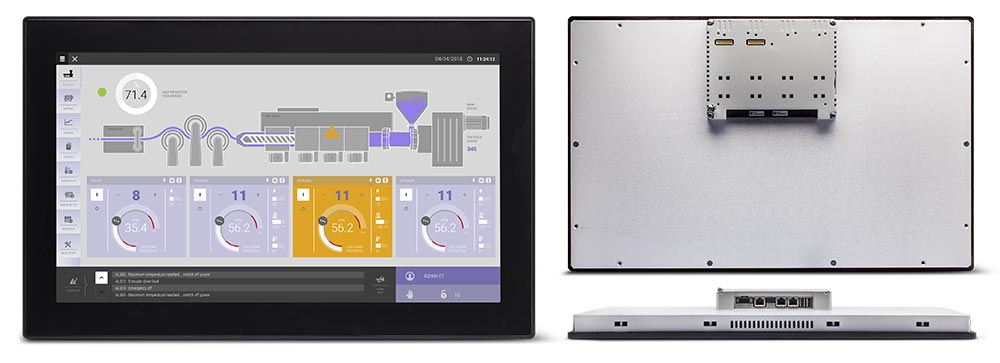

eX721 - +EX721U5P1
✅ Model: eX721 – 21.5” Full HD HMI for industrial & IoT edge applications
✅ Display: 21.5” TFT LED display, resolution 1920×1080, 16M colors, dimmable LED backlight
✅ Touchscreen: True glass projected capacitive (PCAP) multitouch for natural, gesture-based operation
✅ Brightness: 300 Cd/m², dimmable to 0% – excellent optical performance
✅ Enclosure: Robust design suitable for factory, marine, and building automation
✅ Connectivity:
• 3× Ethernet ports (1× Gigabit, 2× 10/100 Mb)
• 2× USB Host ports (V2.0)
• 1× Serial port (RS-232/485/422, software configurable; expandable to 3 via plug-in modules)
• SD card slot
✅ Expansion: 2 slots for optional plug-in modules (e.g., Fieldbus, networks)
✅ Optional: Integrated CODESYS V3 PLC runtime supporting EtherCAT, PROFINET, Ethernet/IP, POWERLINK
✅ Software:
• JMobile runtime included (requires JMobile v2.6 or higher)
• Supports Corvina Cloud secure connectivity with full network separation
• OPC UA Server and Client
✅ Performance:
• 32-bit RISC quad core CPU, 800 MHz
• 8 GB Flash memory, 2 GB RAM
✅ Power supply: 24 Vdc (10–32 Vdc), max consumption ~1.7 A
✅ Operating temperature: -20°C to +60°C (vertical installation; up to +50°C with plug-in modules or USB devices)
✅ Protection: IP66 front, IP20 rear – Type 12, 4X – ideal for demanding industrial environments
✅ Certifications: CE, cULus, ATEX Zone 2/22, IECEx Zone 2/22, DNV-GL, LR, EU RO MR, RCM
✅ Dimensions: Faceplate 552×347 mm; cutout 541×336 mm; depth 56+8.5 mm; weight 6.1 kg
Terms and Conditions
30-day money-back guarantee
Shipping: Contact us info@aarkautomation.com
Display - Colors :21,5“ TFT LED - 16M, Resolution :1920x1080, full HD, Brightness :300 Cd/m2 typ., Touchscreen :PCAP, Multitouch, CPU :32-bit RISC quad core - 800 MHz, Operating System :Linux RT, Flash :8 GB, RAM :2 GB, RT-Clock, RTCBack-up, Buzzer :Yes, Interface:, Ethernet port :3 (port 0 - 10/100/1000, port 1 - 10/100, port 2 - 10/100), USB port :2 (Host V2.0, max. 500 mA), Serial port:1 (RS-232, RS-485, RS-422, software configurable). Max 3 serial ports using plug-in modules., SD card :Yes, Expansion :2 slot for plug in modules, Ratings:, Power supply :24 Vdc (10 to 32 Vdc), Current Consumption :1.7 A at 24 Vdc (max.), Input Protection :Electronic, Battery :Rechargeable Lithium battery, not user-replaceable, Environment Conditions:, Operating Temperature:-20° to +60 °C (vertical installation). Plug-in modules and USB devices may limit max temperature to +50 °C, Storage Temp :-20°C to +70°C, Operating / Storage Humidity :5-85% RH, non condensing, Protection Class :IP66 (front), IP20 (rear) - Type: 12, 4X, Dimensions and Weights:, Faceplate LxH :552x347 mm (21,7x13,66“), Cutout AxB :541x336 mm, Depth D+T :56+8.5 mm, Weight :6.1 Kg, Approvals:, CE :Electromagnetic Compatibility Directive 2014/30/EU (EMC), ATEX :Zone 2/22: II 3 G Ex nA IIC T5 Gc, II 3 D Ex tc IIIC T95°C Dc, IECEx :Zone 2/22: Ex nA IIC T5 Gc, Ex tc IIIC T95°C Dc, UL :cULus: UL61010-1 / UL61010-2-201, UL :cULus: Class 1 Div 2, DNV-GL, LR, EU RO MR :Yes, RCM :Yes
